    Heavy Duty 4 Axis CNC Press Brake Machine , 400 Ton Sheet Bending Machine

    Ask Lasest Price
    Brand Name : Friendship Machinery
    Model Number : WC67Y Series
    Certification : CE, ISO
    Supply Ability : 50 sets per month
    Delivery Time : 30-40 working days
    • Product Details
    • Company Profile

    Heavy Duty 4 Axis CNC Press Brake Machine , 400 Ton Sheet Bending Machine

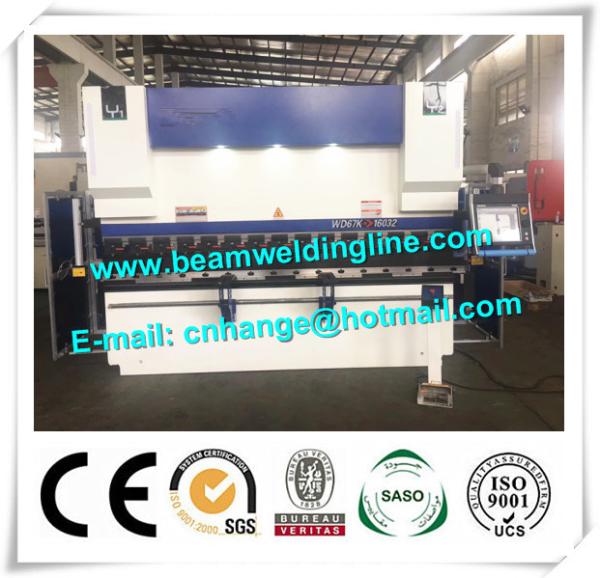

    Heavy Duty 4 Axis CNC Press Brake Machine


    400Ton Sheet Bending Machine


    Automatic CNC Tandem Press Brake Hydraulic 650 Ton Synchro


    • Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.

    • 4 axes (Y1, Y2, X, R-axis)

    • Back gauge system with X, R axis driven by AC servo with colored graphics.

    • HOERBIGER servo hydraulic system.

    • CNC controlled motorized anti-deflection system.

    • Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).

    • Easy to clamp tool holding system with upper and lower tools.

    • Standard graphic controllers can be selected from: Delem DA58T 2D colour graphical touch screen controller, Cybelec Mod Eva 12 S

    • Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.

    • Ergonomic user friendly, pendant control panel.

    • Back light safety guards (category-4)

    • Front side covers with safety switches.

    • Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.

    • Foot pedal suitable to CE regulation.

    • Sliding front support arms with T slot and mm/inch rulers.

    • Throat depth 410 mm.


    TECHNICAL SSPECIFICATIONS
    1TypePress brake machine cnc price
    2CNC Control AxisY1-Y2-X-R-axis & Crowning
    3Bending force400 Ton
    4Bending length5000 mm
    5Distance between columns4050 mm
    6Gap400 mm
    7Daylight Opening400 mm
    8Beam320 mm
    9Table height880 mm
    10Table Width250 mm
    11Fast Speed80 mm/sec
    12Bending Speed0~8 mm/sec
    13Return Speed80 mm/sec
    14Back Gauge Stroke750 mm
    15Motor Power30 KW
